Table Lifter

Hyperack Manual Hydraulic Table Lifter is offered for goods-handling tasks such as lifting and positioning suitable loads at a work station. The table lifter comes with complete specifications, direct factory sourcing, and is made in Malaysia. Select the unit for the actual load, working height, floor and operating method, and request the applicable instructions.

Published specification reference

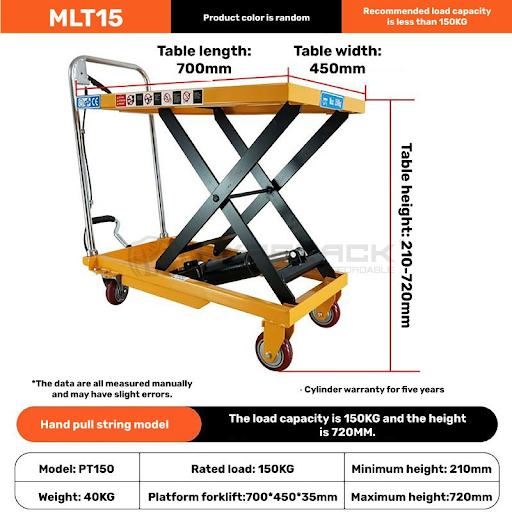

The specification graphic carries MLT15 and PT150 labels, lists a 150 kg rated load, a 700 mm by 450 mm platform, and a 210–720 mm table-height range. It also recommends operation below the stated load figure and notes that measurements may vary slightly. Confirm the actual model, nameplate limits, load distribution and dimensions for the unit in your quotation.

Warranty scope to confirm

The published product text advertises a three-month manufacturing-defects warranty. The specification graphic separately mentions a five-year cylinder warranty. Ask Hyperack which written terms and component cover apply to the quoted unit, including the provider, start date, exclusions and any parts, labour or transport conditions. The cylinder statement does not establish five-year cover for the complete machine.

Prepare a table lifter enquiry

  • Goods dimensions, mass, centre of load and how the load will sit on the platform
  • Required lowered and raised working heights and the transfer or positioning task
  • Floor condition, available space and any route over which the loaded unit may be moved
  • Operating frequency, environment and the required instructions or handover support
  • Unit model, delivery and setup scope, written warranty and service arrangements

Contact Hyperack to confirm the supplied unit and operating limits before ordering.

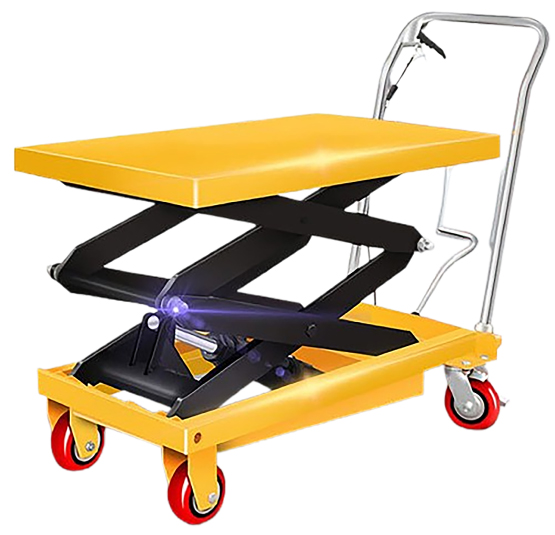

table lifter

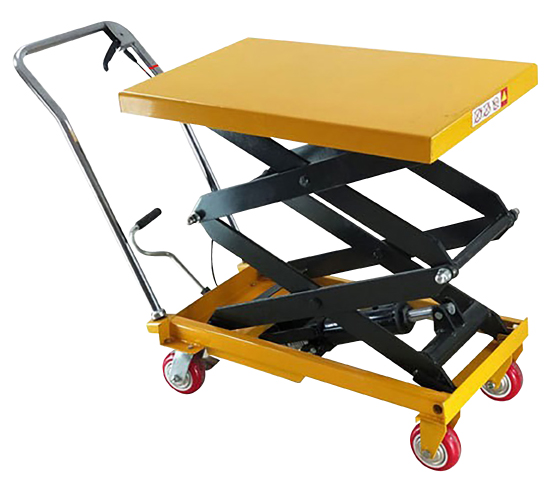

table lifter raised
table lifter specs

5 Easy Steps

1. Enquiry

Your journey begins with a simple enquiry. Once we receive your request, our team will review the details and match you with the right expert. We’ll then arrange a quick call or email to learn more about your goals and expectations.

2. Free Consultation

After your initial consultation, we’ll arrange a site visit to assess your space and needs in detail. You’ll meet your dedicated project manager, who will guide the process from start to finish—ensuring everything runs smoothly and efficiently.

3. 3D CAD Design

After the site survey, your project manager will recommend layout options tailored to your space and needs. We’ll then create accurate 3D CAD designs to help you visualise exactly how your facility will look once complete.

4. Instant Quote

You’ll receive a free, personalised quote with a full breakdown of the recommended equipment. We offer high-quality products at competitive prices, with reliable delivery times to keep your project on schedule.

5. Installation

We’ll agree on an installation schedule that suits your operations. Our accredited team will complete the setup, conduct a final inspection with you, and provide follow-up support, including annual safety checks.

Ready to make a change?

We are here to help you choose the best racking for your business. Schedule a call with our representative today.

Need help? ask an expert
about_hyperian-call-left_555

FAQ

A hydraulic table lifter can position suitable goods at a required working height and support a specified handling task. Confirm the unit’s permitted load arrangement, height range, floor conditions and operating method for your application. Follow its instructions for positioning or movement, including the travel configuration where movement is permitted.

The published specification graphic labels a 150 kg rated load and also recommends operation below that figure. Confirm the actual unit model, nameplate limits and permitted load distribution with Hyperack. The goods’ mass, dimensions and position on the platform must suit the instructions; a catalogue or graphic figure does not replace the limits for the supplied unit.

  • Lifting height: 210mm to 720mm
  • Platform size: 700mm (L) x 450mm (W)

These are the dimensions shown in the published specification graphic. Confirm the actual model and measurements on the quotation, including whether the required loading, transfer and working heights fall within the unit’s permitted operating range.

The illustrated unit has caster wheels, but the ease and safety of movement depend on the actual load, floor, clearances, wheel and brake condition, and the travel position permitted by its instructions. Confirm the intended route and operating procedure with Hyperack before moving a loaded unit.

The published product text advertises three-month cover for manufacturing defects, while the specification graphic separately mentions five-year cylinder cover. Ask Hyperack for the written warranty applying to your quoted model and component, including its provider, start date, exclusions and parts, labour or transport conditions. Do not assume that the cylinder statement extends cover for the whole machine.

Use the unit’s inspection and maintenance instructions and confirm the service arrangements before purchase. Report leaks, damaged components or abnormal lifting or lowering for assessment and follow the stated safe procedure for taking affected equipment out of use. Hydraulic construction does not guarantee that the unit will remain leak-free or require no servicing.

Consider the table lifter for a specific goods-handling task in the following settings, subject to the unit’s load, working-height, floor, environment and operating limits:

  • Warehouses
  • Factories
  • Manufacturing plants
  • Workshops
  • Retail stockrooms
  • Logistics and distribution centers

Ask Hyperack what delivery preparation, assembly, pre-use checks, instructions and handover are included for the selected unit. Confirm any setup or support needed at your site and who is responsible for it. Do not assume a particular delivery condition or that a ready-assembled unit can be used without its required checks.

  • Direct factory sourcing
  • Made in Malaysia
  • Confirm the model and nameplate specification on the quotation
  • Request the operating instructions and required pre-use checks
  • Compare the delivered price, setup and written warranty scope
  • Confirm service contact, spare-parts and repair arrangements
