Gondola Rack
Hyperack supplies gondola racks and display racks for minimarkets, convenience stores, supermarkets and other retail environments across Malaysia. The range includes steel panels, pegboards or wire mesh backing, with shelves, hooks, baskets and other display accessories selected for the merchandise and fixture.

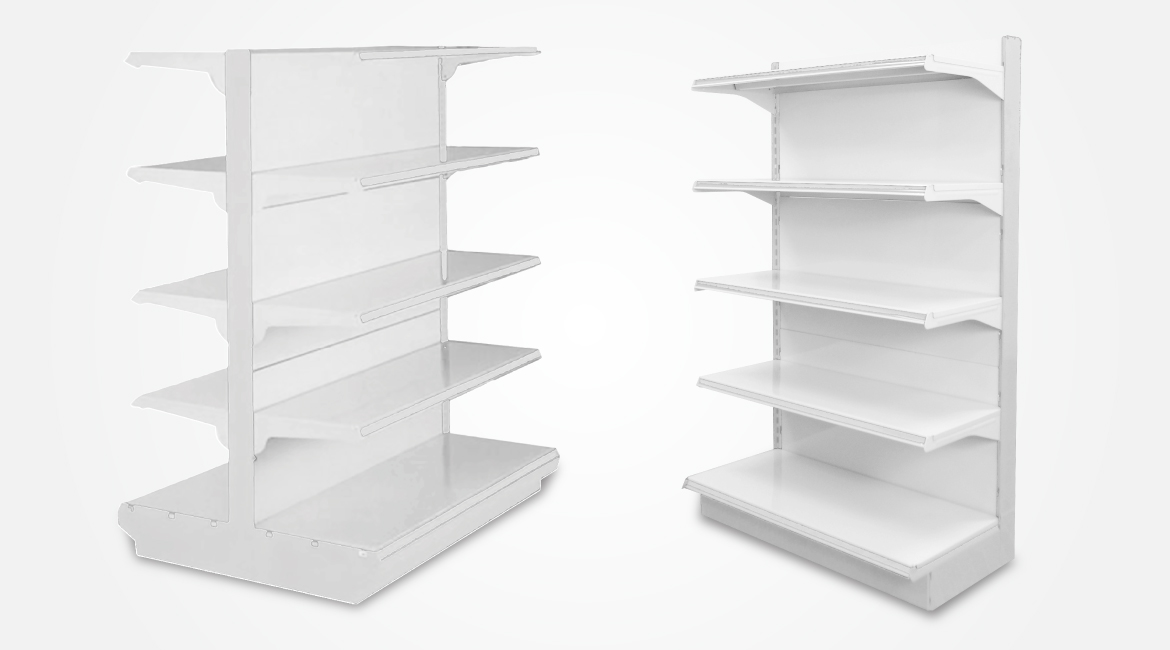

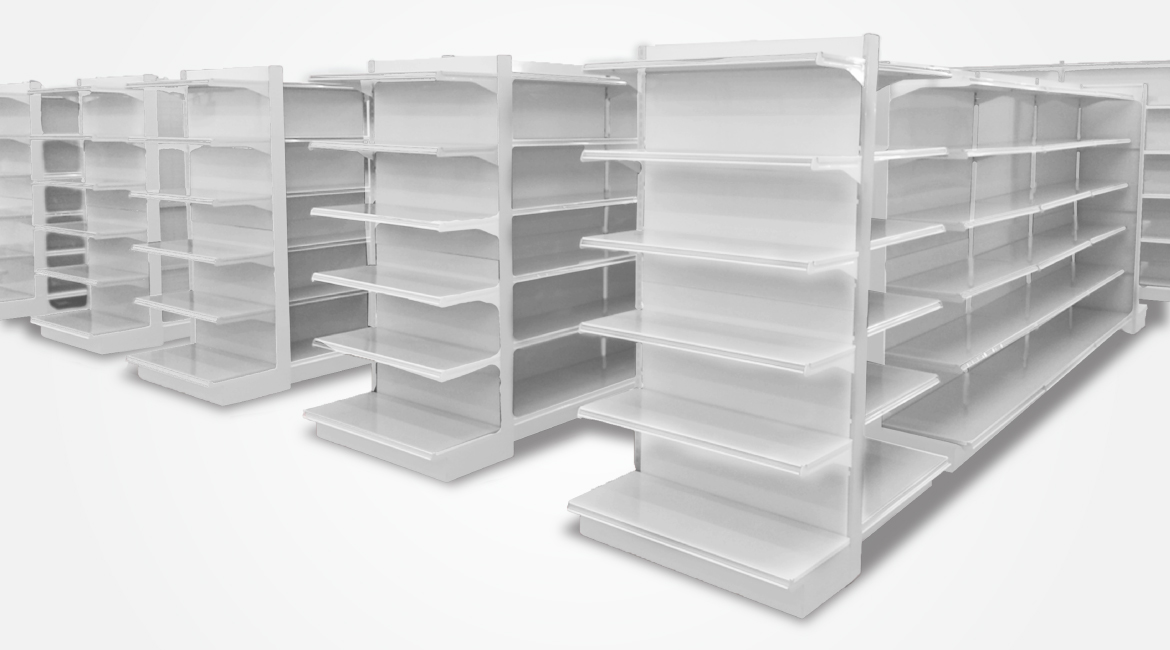

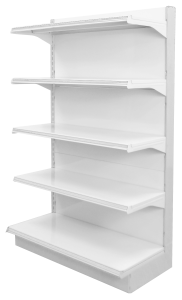

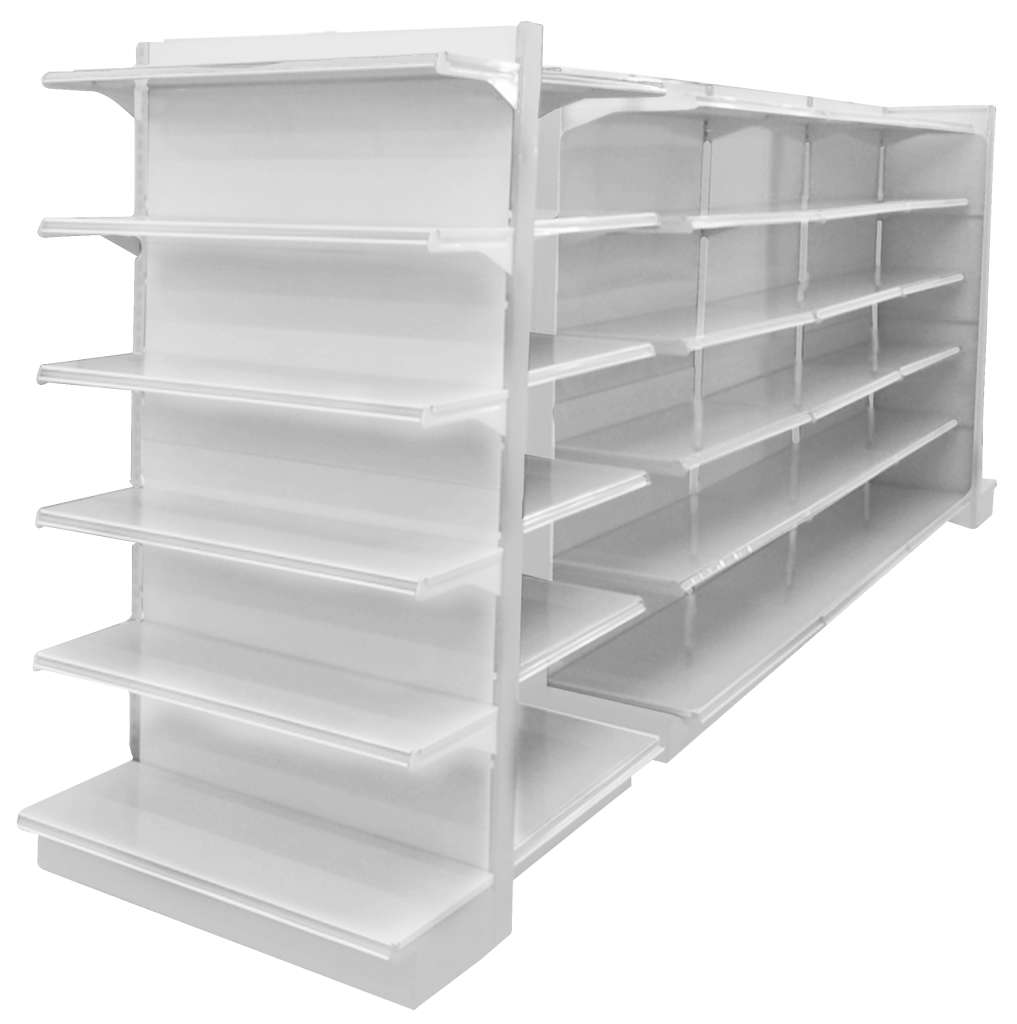

Single-sided wall units can serve perimeter displays, while double-sided island units display goods on both sides. Discuss end displays and the position of each unit as part of the store layout. The store layout, merchandise type and restocking access determine which configuration, shelf sizes and accessories are selected. For guidance on planning a minimarket layout, see our minimarket gondola display planning guide.
If you are comparing display fixtures with stockroom shelving, use our gondola-versus-boltless comparison to prepare the requirements for your shop.
At HYPERACK, we offer a comprehensive range of Gondola Racks and Display Racks designed to suit a variety of retail environments, including supermarkets, minimarkets, pharmacies, hardware stores, bookstores, convenience stores, and grocery outlets. Our extensive range of Gondola Display Accessories includes plastic front stoppers, wire front stoppers, bar hooks, mesh hooks, gondola baskets, ticket holders, label holders, and many other merchandising solutions to enhance product presentation.
Hyperack’s published gondola range uses an epoxy powder-coated finish. Discuss the operating environment, finish requirements and the scope of layout planning, delivery and installation when requesting your quotation.
Published gondola range

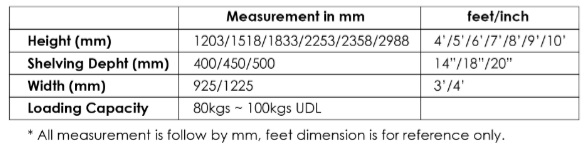

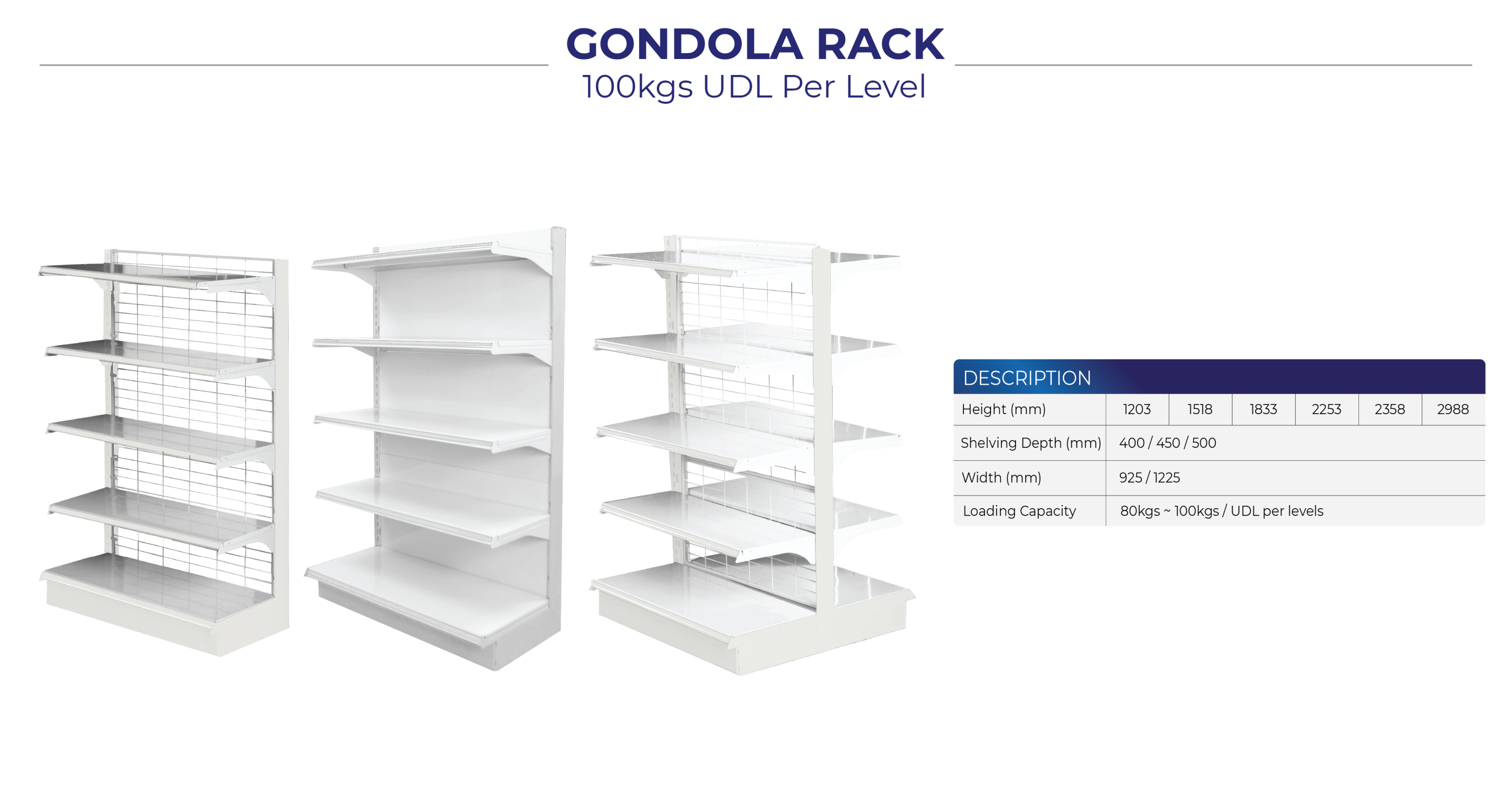

Hyperack’s published range sheet lists the following dimensions and an 80–100 kg UDL loading range per shelf level. UDL means uniformly distributed load: weight spread evenly across the shelf surface. Confirm the permitted load for the selected shelf and fixture configuration.
- Height (mm): 1203, 1518, 1833, 2253, 2358, 2988
- Shelf depth (mm): 400, 450, 500
- Width (mm): 925, 1225
- Listed loading range: 80–100 kg UDL per level; confirm the selected configuration

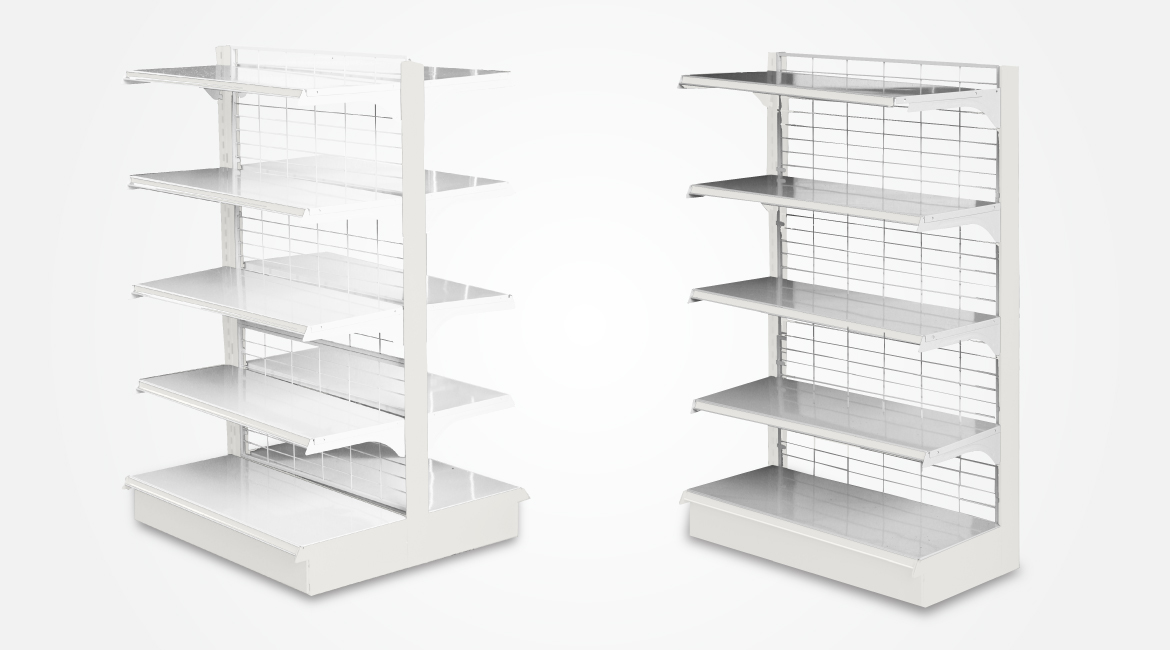

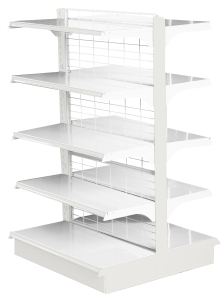

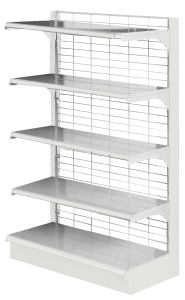

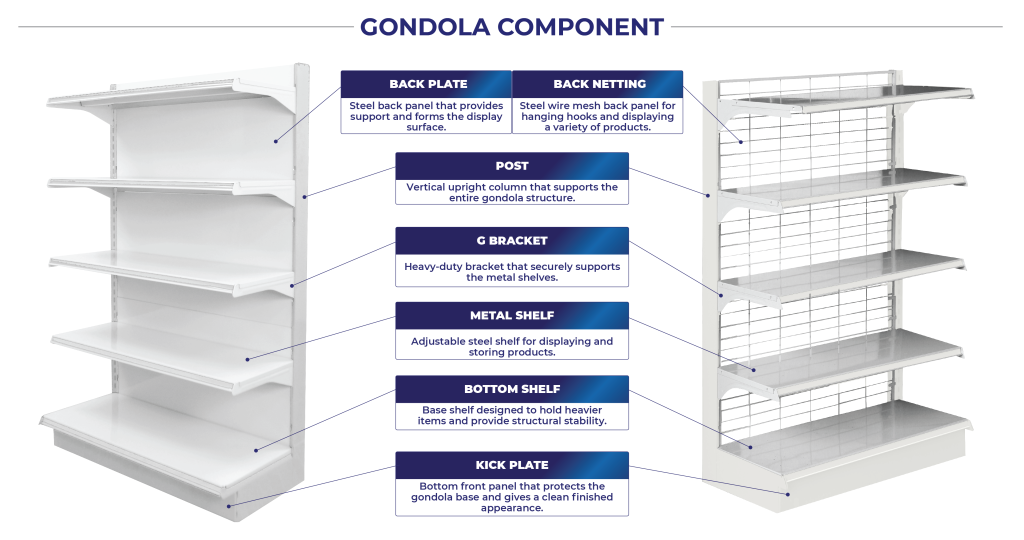

Back panels are available as a solid steel back plate or as wire mesh netting suited to hanging hooks and display accessories. Ask Hyperack to confirm the shelf and whole-fixture limits, as well as separate accessory ratings and compatibility for the proposed merchandise. The selected shelf sizes, fixture arrangement and accessories must match the actual merchandise weight and dimensions.
Requesting a gondola rack quotation
To receive an accurate quotation, provide the following information when you contact Hyperack:
- Store floor plan, dimensions, checkout position and door locations, or photographs of the space
- The number of wall (single-sided), island (double-sided) and end display units required, and the desired shelf sizes from the published range
- The actual merchandise to be displayed, including item sizes, loaded shelf weights and any specific accessories such as hooks, baskets or front stoppers
- Fixed obstructions such as columns, counters or electrical points, and the access and restocking routes through the store
- Your intended opening or refit date, so that delivery and installation scheduling can be discussed
Use the minimarket gondola display planning guide and the quotation brief template to prepare your requirements. Contact Hyperack to discuss your project.
Ideal for :
- Showcasing a wide variety of products
- Maximizing product visibility
- Creating organized and visually appealing displays
Advantages :
- Adjustable shelves and hooks allow for flexible customization and eye-catching product displays
- Maximizes vertical space to increase product display capacity
- Easy to assemble with a wide range of display accessories available to suit different retail needs
5 Easy Steps
1. Enquiry
Tell us about your store layout, the merchandise you display, and the fixture types and accessories you need. We will review your requirements and follow up to discuss suitable options.
2. Site & Measurement
Confirm whether a site measurement or layout service is needed for your space. If included, we can assess the floor plan and recommend fixture positions to suit your store flow.
3. Fixture Layout
Finalise the fixture configuration, bay sizes and accessories for your store. If drawings or CAD layouts are part of your project scope, confirm what is included before requesting your quotation.
4. Quotation
Request an itemised quotation for the selected fixtures and accessories, including delivery, installation scope and timing. Review what is covered and confirm the schedule before you proceed.
5. Installation
We'll agree an installation schedule that suits your operations. Our team will complete the setup and conduct a handover walkthrough with you. Ask what follow-up and inspection services your quotation includes.
Ready to make a change?
We are here to help you choose the best racking for your business. Schedule a call with our representative today.
FAQ
How do Gondola Racks enhance retail store layouts?
Gondola Racks are engineered to maximize space utilization by optimizing both horizontal and vertical storage. With their modular design, these racks can be configured in various orientations, allowing retailers to customize their displays based on the available floor space. The base of the Gondola Rack is typically reinforced with a steel frame to provide stability, while the upright posts are often perforated for easy height adjustment of shelves. This flexibility allows for the dynamic organization of products, improving accessibility and display aesthetics.
What display accessories can be used with Gondola Racks?
Ask Hyperack which shelves, hooks, baskets, dividers, back panels and sign holders are compatible with the quoted gondola model. Confirm the fixing method, permitted shelf and accessory loads, and the merchandise dimensions and weights they are intended to support. Check which components and finishes are included in the quotation. Lighting or digital signs need their own equipment, mounting, power and compatibility scope; they are not automatically included with a retail fixture.
Can Gondola Racks be used in smaller stores or confined spaces?
Yes, Hyperack’s gondola racks can suit minimarkets, convenience stores, pharmacies and other smaller retail spaces when the layout, merchandise and access requirements are matched to the selected units. Single-sided units fit against a wall, while double-sided island units serve open floor areas; the store layout, merchandise and restocking access determine which type and shelf sizes suit the space. Use the published dimensions to discuss the required height, width and shelf depth, and ask Hyperack to confirm shelf and accessory ratings for the merchandise. See the minimarket gondola display planning guide for layout considerations, and contact Hyperack with your floor plan and merchandise details for a recommended arrangement.
What makes Gondola Racks a cost-effective solution for retail businesses?
Compare the installed quotation and expected ongoing costs for your actual display: selected units and accessories, delivery, installation, planned alterations, cleaning and inspection, replacement parts and written support terms. Reusing or extending a fixture depends on compatible components and the manufacturer’s instructions for the proposed arrangement. Give suppliers the same measured floor plan and merchandise brief so the scope is comparable. Actual savings or return depend on the retailer’s costs and operating results, rather than the modular design alone.
How can I make my Gondola Rack displays more attractive and functional?
Plan shelf positions, product grouping, labels and compatible end displays around the merchandise and the measured shop layout. Allow for customer browsing, reach, sightlines and restocking access. Use an angled shelf arrangement only where the selected system permits it and the applicable load limits are confirmed. Scope lighting or digital displays separately with the relevant suppliers. Review any display change against the retailer’s own results instead of assuming that a fixture or accessory will increase sales.
What are the key components of a Gondola Rack system?
Gondola Racks typically consist of a base, vertical standards (also known as uprights), and adjustable shelves. The base provides stability, while the vertical standards support the shelves and allow for vertical adjustment. This modular design enables retailers to customize their display configurations to suit various product types and store layouts.
How do Gondola Racks contribute to inventory management?
Gondola Racks facilitate efficient inventory management by allowing easy restocking and organization of products. Their adjustable shelves enable retailers to optimize space and display products effectively, which can lead to improved stock visibility and easier inventory tracking.
Are Gondola Racks suitable for all types of retail products?
No single gondola arrangement suits every retail product. Provide the product dimensions, maximum weights, packaging and planned quantity on each shelf, hook or basket. Ask Hyperack to confirm the permitted shelf, accessory and whole-unit loads for the selected model and layout. Heavy, bulky, fragile or hanging merchandise needs suitable support and compatible components. Confirm the operating environment, cleaning requirements and intended indoor or outdoor use with the supplier before choosing a particular fixture.
What are the maintenance requirements for Gondola Racks?
Follow the care and inspection instructions for the selected gondola system and its actual operating environment. Record corrosion, deformation, damaged parts or loose connections and arrange competent assessment of concerns; cleaning or a visual check alone does not confirm the fixture’s capacity or continued suitability. Ask Hyperack about compatible replacement parts, inspection responsibilities and written maintenance or support terms. Changes to shelves, accessories or the loading arrangement should follow the manufacturer’s instructions and confirmed limits.
Can Gondola Racks be customized to match store branding?
Yes, many manufacturers offer customization options for Gondola Racks, including color choices, branding decals, and specific shelf configurations. This allows retailers to align the racks with their store’s aesthetic and branding guidelines, enhancing the overall shopping experience.
